| 1- SL-1. Prophet front (x1) |
37- Air flow tube (x1)
|
| 2- SL-2. Body Prophet II (x1) |
38- M3x5 DIN7991 (x13)
|
| 3- AR-15 Grip (x1) |
39- M4x4 DIN913 (x5)
|
| 4- SL-4. Adjustable buttstock (x1) |
40- M5x5 DIN913 (x1)
|
| 5- Right cover (x1) |
41- Trigger arm (x1)
|
| 6- Left Cover (x1) |
42- Clevis (x1)
|
| 7- 610. Shroud (x1) |
43- Trigger link rod (x1)
|
| 8- Shroud cap (x1) |
44- M8x6 DIN913 (x1)
|
| 9- Shroud thread cover (x1)
|
45- Trigger sear (x1)
|
| 10- Barrel (x1) |
46- Trigget pivot sear (x1)
|
| 11- Muzzle cap (x1)
|
47- M3x5 DIN913 (x2)
|

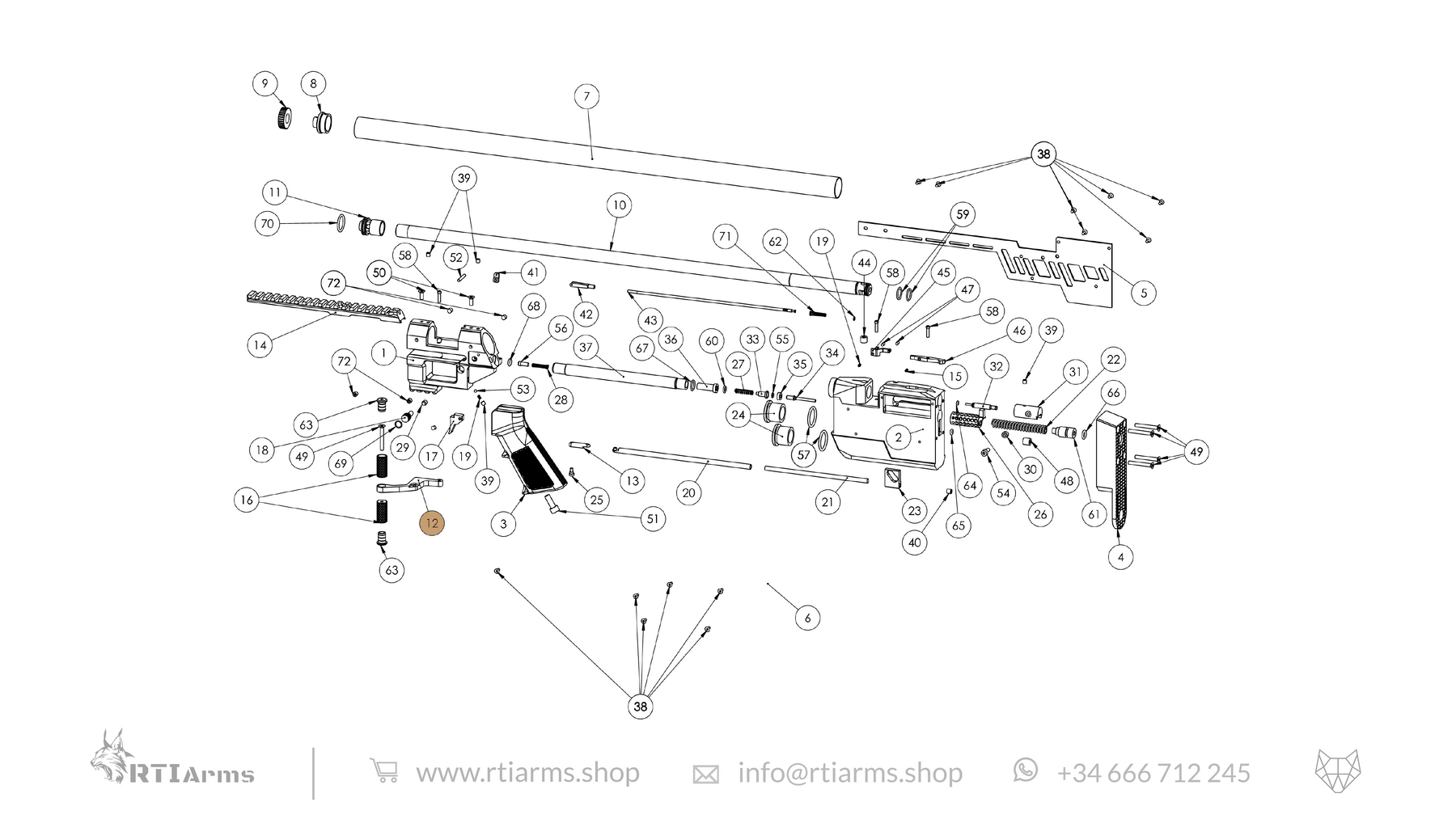

| 12- SL-12. Cocking handle (x1)
|
48- M8x8 DIN913 (x1)
|
| 13- SL-13 Cocking rod link (x1)
|

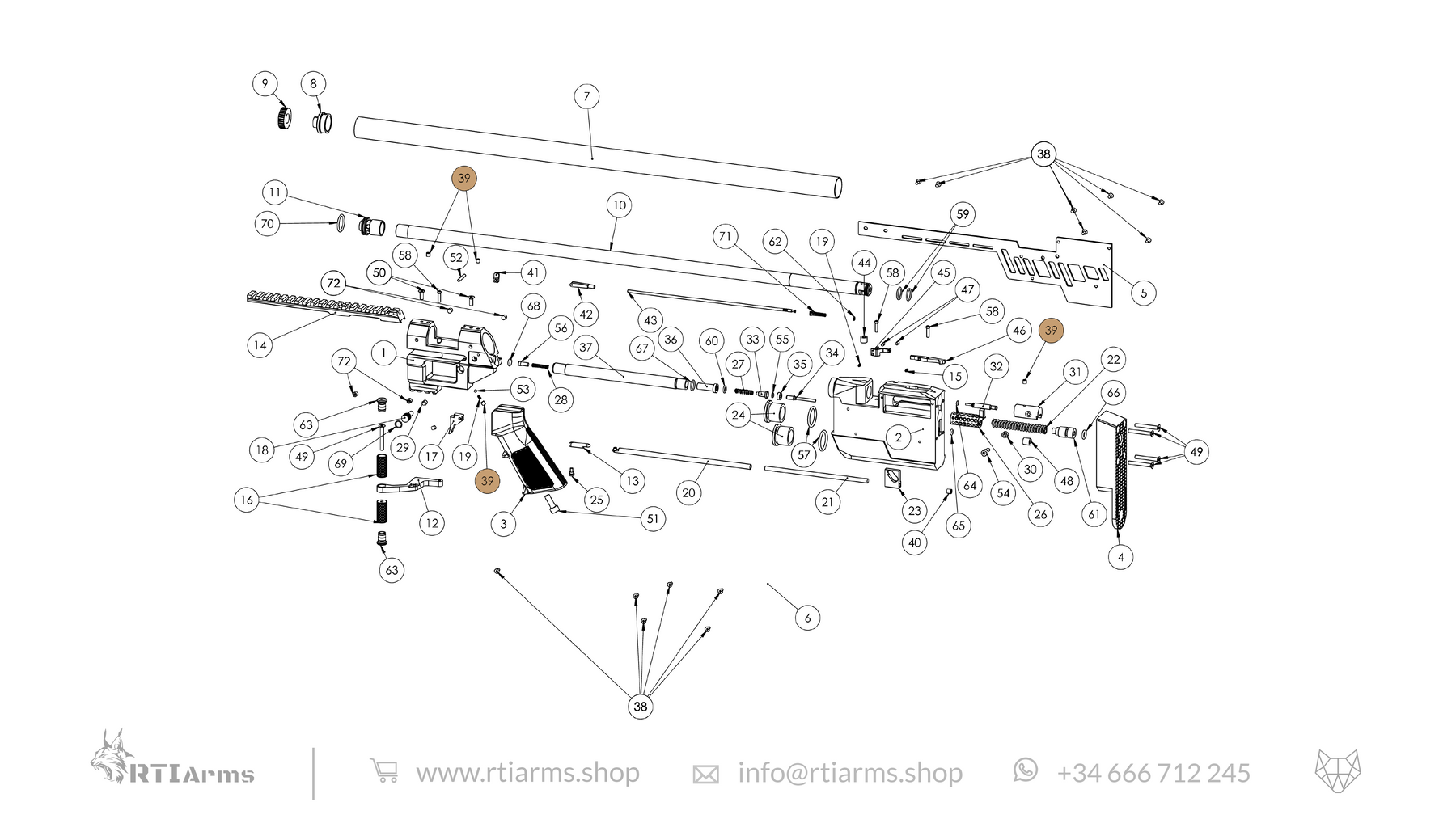

49- M4x30 DIN7991 (x5)
|
| 14- 20MOA scope rail (x1)
|
50- M4x10 DIN7991 (x2)
|
| 15- Spring 1 (x1)
|
51- M6x16 DIN912 (x1)
|
| 16- SL-16. Cocking handle grip (x2) |
52- Trigger axis (x1)
|
| 17- Trigger blade (x1)
|
54- M4x10 DIN912 (x1)
|
| 18- Safety knob (x1)
|
56- Check valve (x1)
|

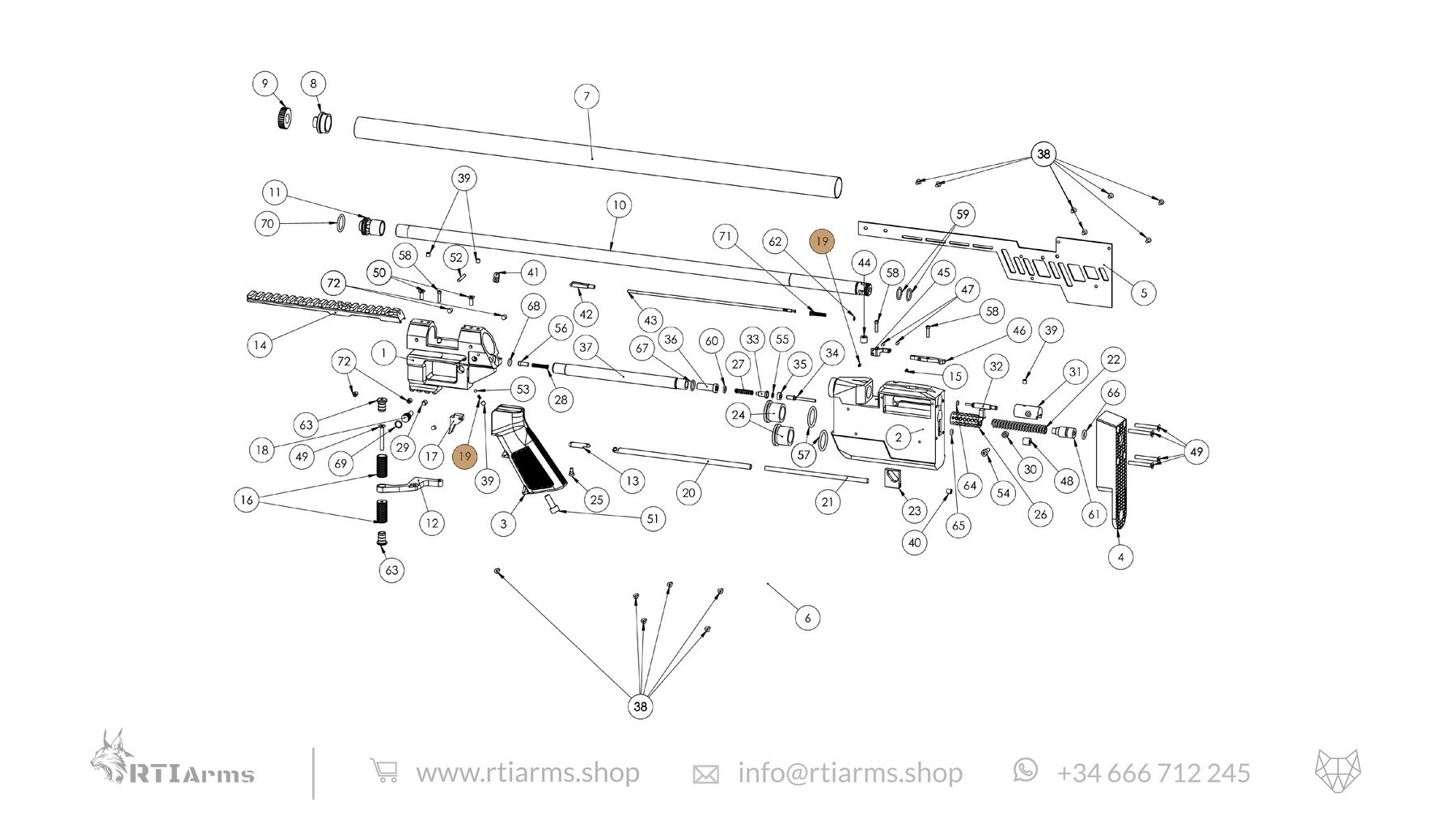

| 19- Spring 2 (x2) |
57- O-ring 20x2.5 NBR70 (x2)
|
| 20- SL-20. Cocking rod (x1)
|

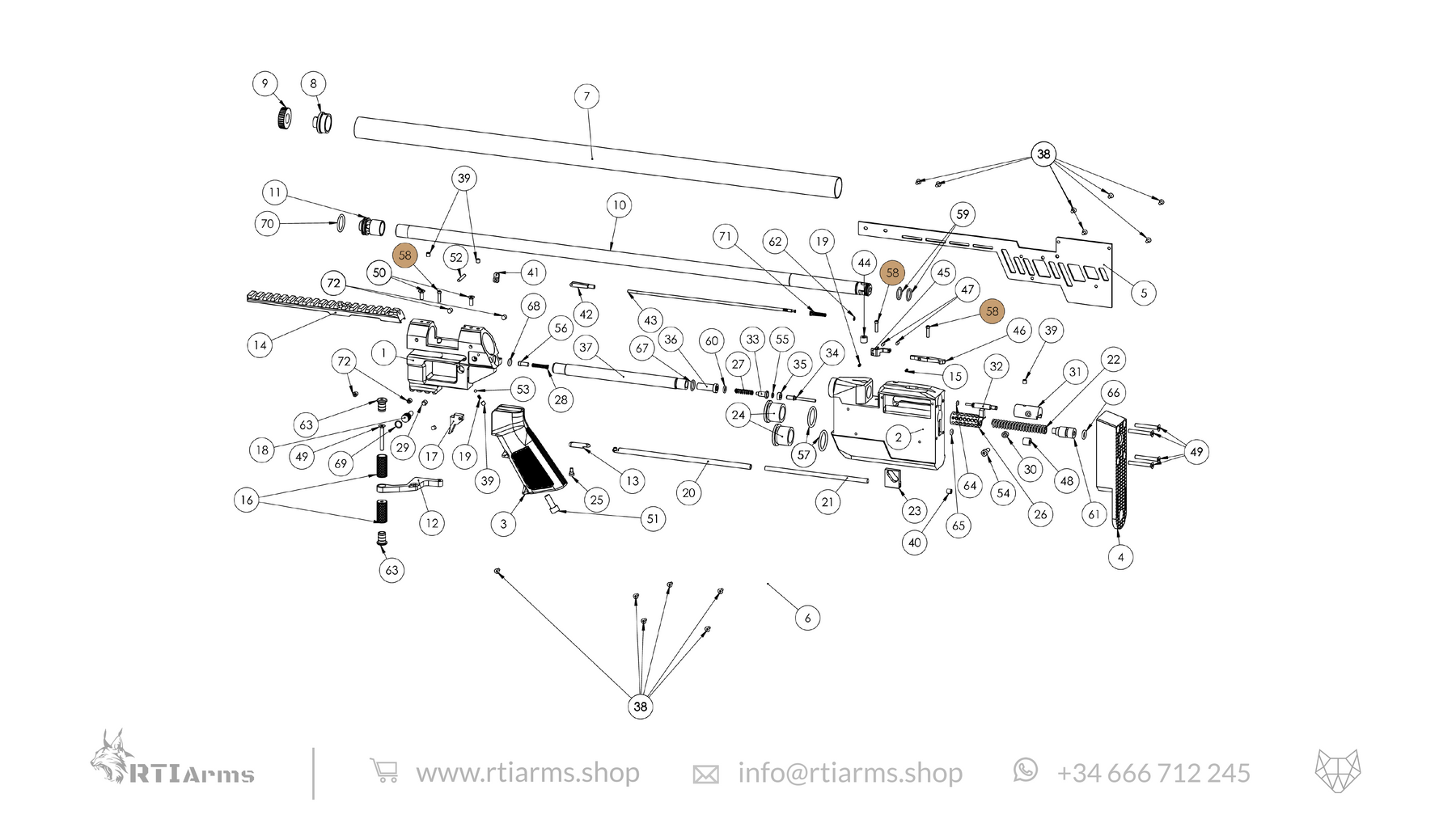

58- Trigger screw (x3)
|
| 21- Cocking rod short (x1)
|
59- O-ring 12x1.5 NBR70 (x2)
|
| 22- Spring 5 (x1)
|
60- O-ring 5.5x1.5 NBR90 (x1)
|

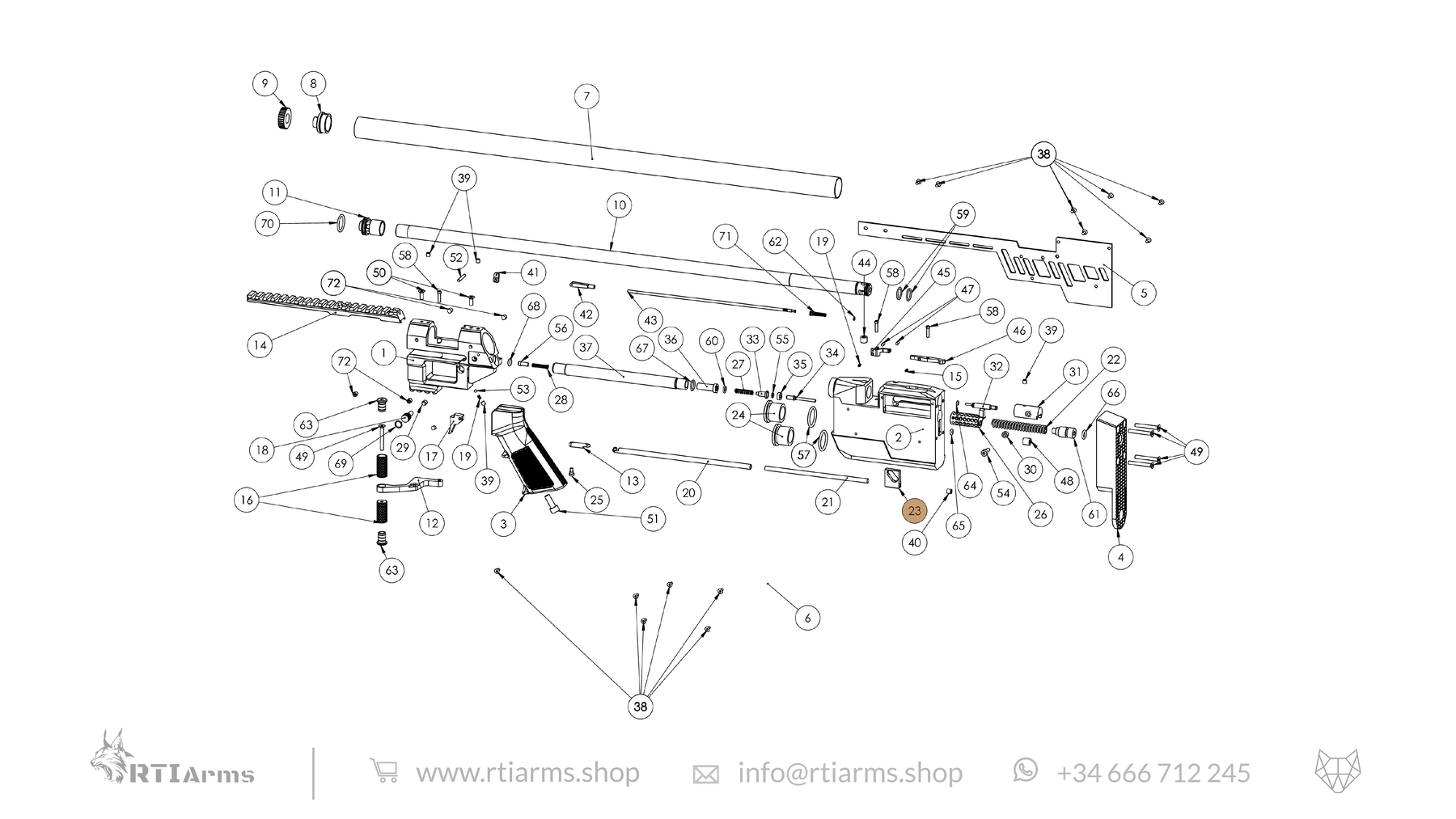

| 23- Slider (x1)
|
61- Hammer spring adjuster screw (x1)
|

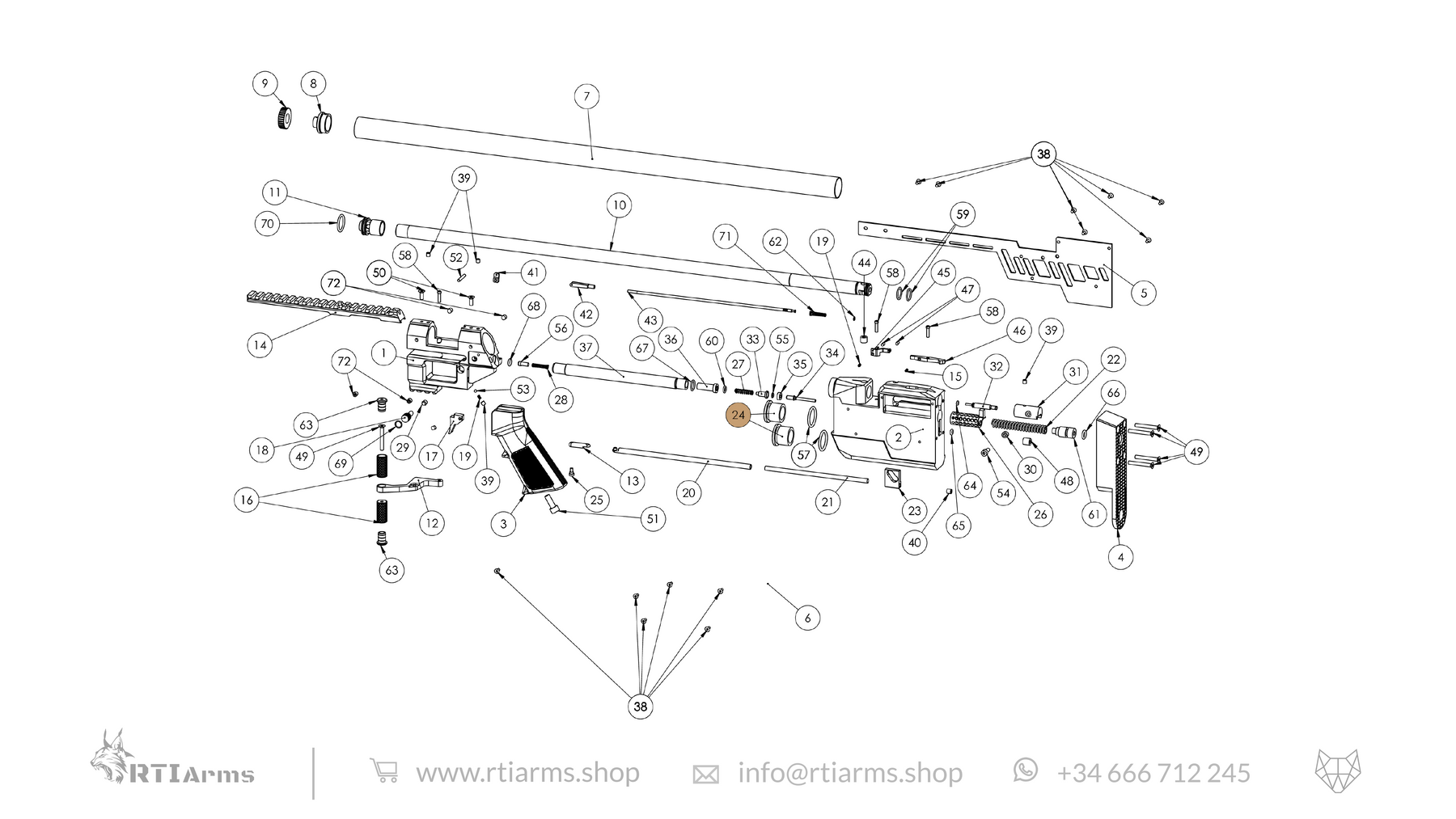

| 24- Plenum caps (x2) |
62- Trigger clip (x1)
|
| 25- SL-25. Cocking handle screw (x1)
|

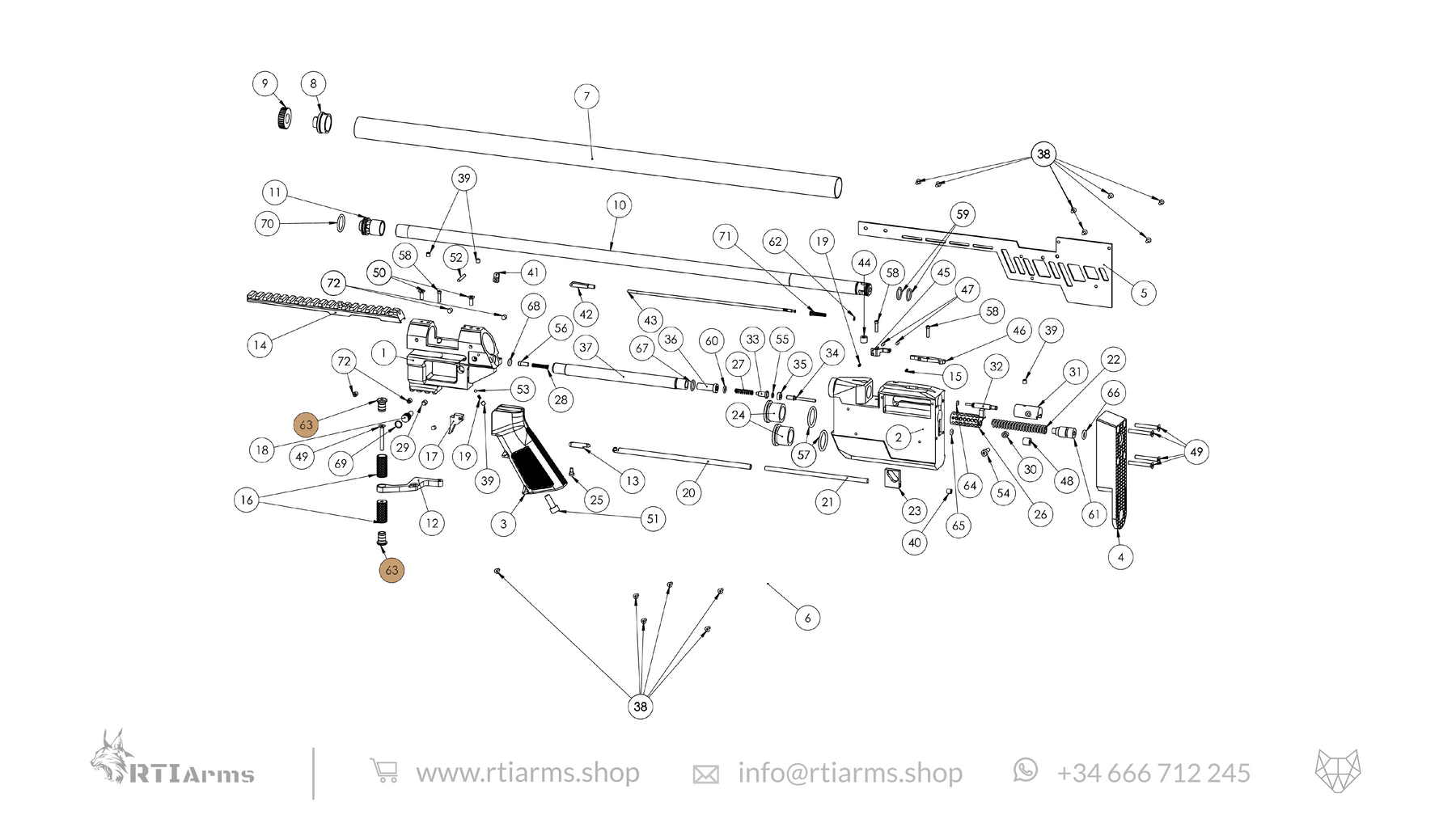

63- Cocking handle plug (x2)
|
| 26- Prophet II hammer (x1)
|
64- O-ring pellet probe (x1)
|
| 27- Spring 7 (x1)
|
65- O-ring 3x2 NBR70 (x1)
|
| 28- Spring 8 (x1)
|
66- O-ring 7x2 NBR70 (x1)
|
| 29- Ball detent (x1)
|
67- O-ring 10x1.5 NBR70 (x1)
|
| 30- Locking screw spacer (x1)
|
68- O-ring 5x2 NBR70 (x1)
|
| 31- SL-31. Pusher guide (x1)
|
69- O-ring 6x1 NBR70 RED (x1)
|
| 32- Pellet pusher (x1) |
70- O-ring 17x2 NBR70 (x1)
|

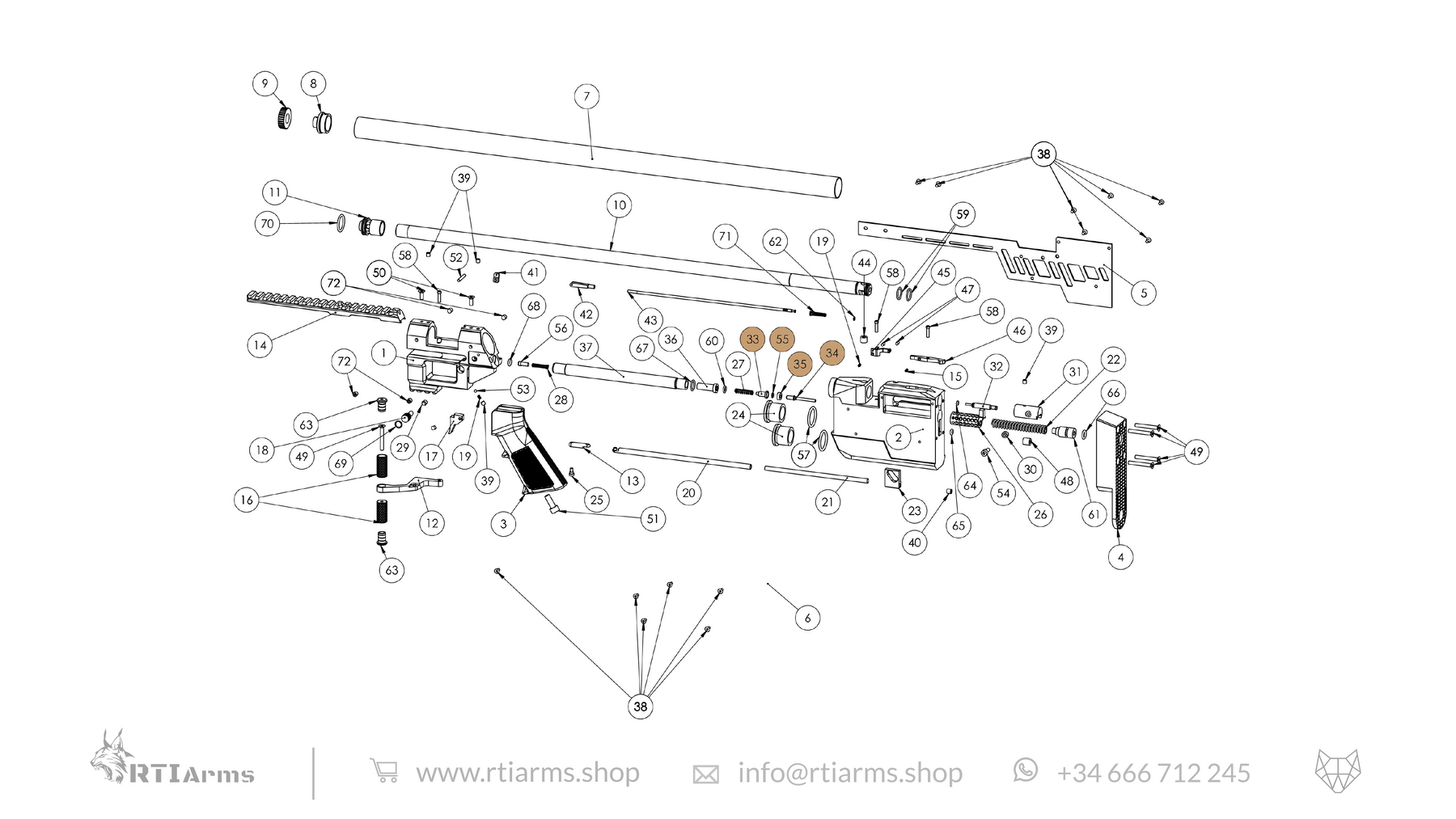

| 33-34-35-55 Assisted valve Prophet (x1)
|
71- Spring (x1)
|
| 36- Valve cylinder (x1)
|
72- M5x4 DIN913 (x4)
|
| 53- Safety ball 3mm (x1)
|
|
