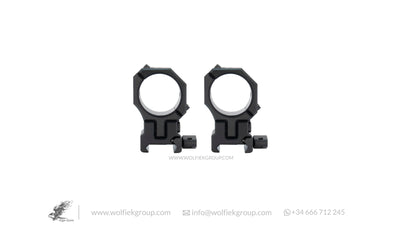

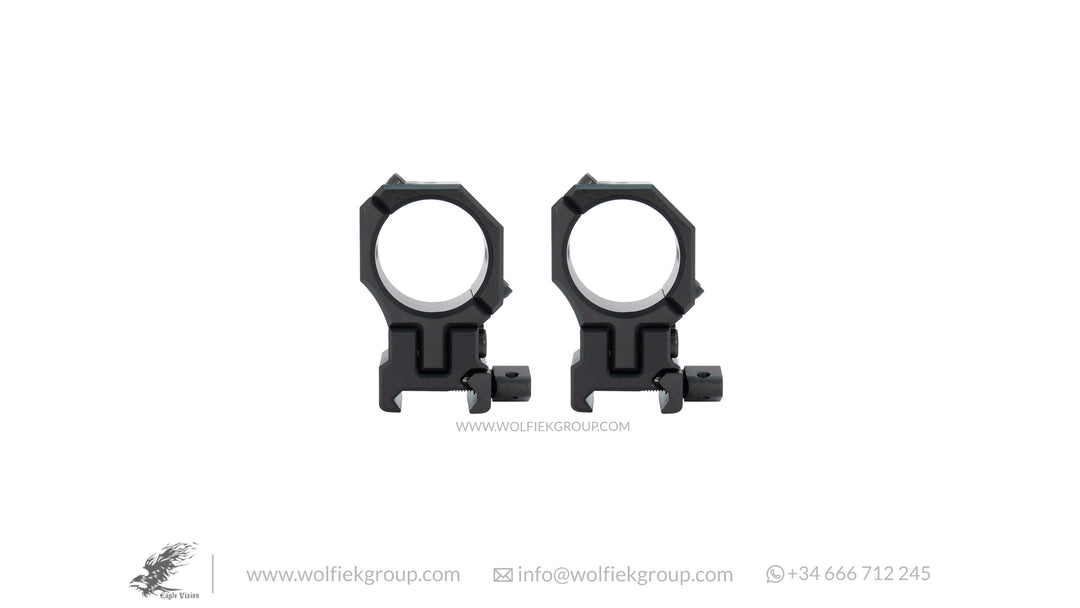

These mounts allow you to adjust the scope mounting height - ideal for bullpups and other PCPs shooting at longer distances. Its dual-locking screw is what allows you to set your desired height or cant angle in order to get more elevation.
Height: 60mm to 65.7mm adjustable
Profile Height: 21 mm.
Adjustable Height: 4.5mm.
Weight: 86 g each (30mm diameter)
Centre of the ring to the bottom of the rail: 36mm (in closed position)
Centre of the ring to the bottom of the rail: 40.5mm in open position
Ring size: 30mm
Rail size: 22mm Picatinny

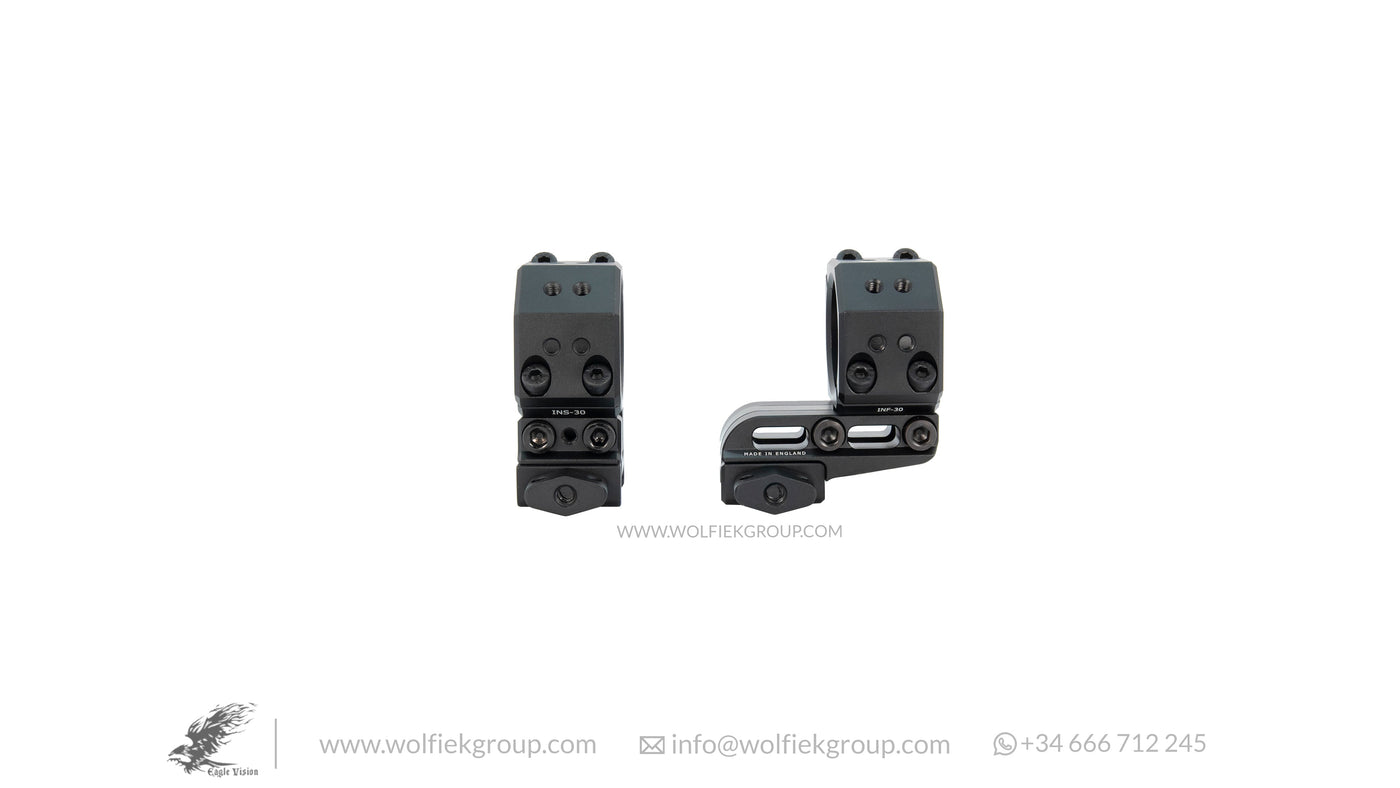

The design of the mount keeps the front mount lower and elevates the rear mount to a higher position. This in turn, is helpful for long-range shooters who find standard scope mount clicks on their turrets self running and unadjusted.
Height: 68.25 mm to 77.75 mm (adjustable)
Profile Height: 23 mm
Adjustable Height: 9.5 mm
Weight: 81 g each
Centre of the ring to the bottom of the rail: 41 mm (in closed position)
Centre of the ring to the bottom of the rail: 51.5 mm (in open position)
Ring size: 30 mm
Rail size: 22 mm picatinny

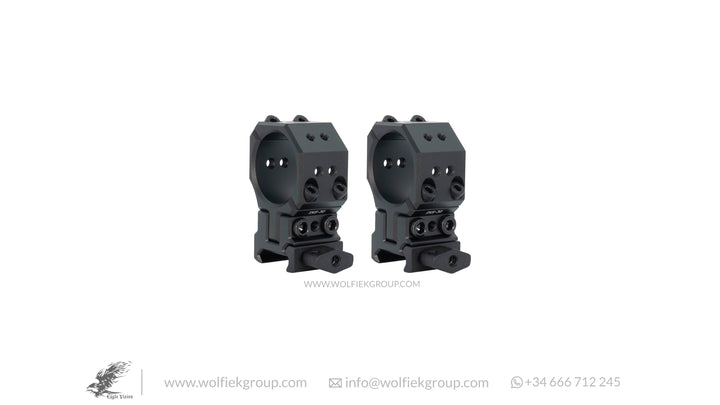

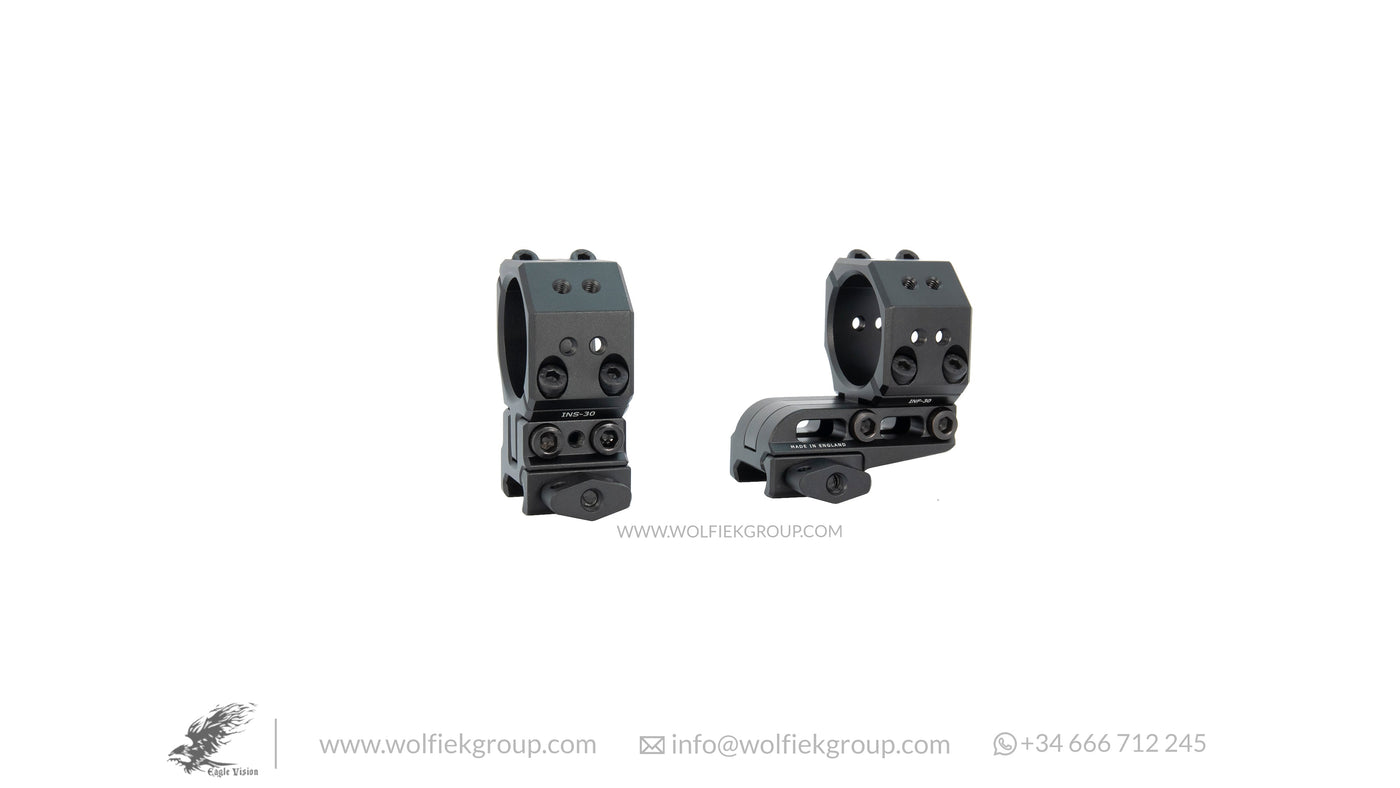

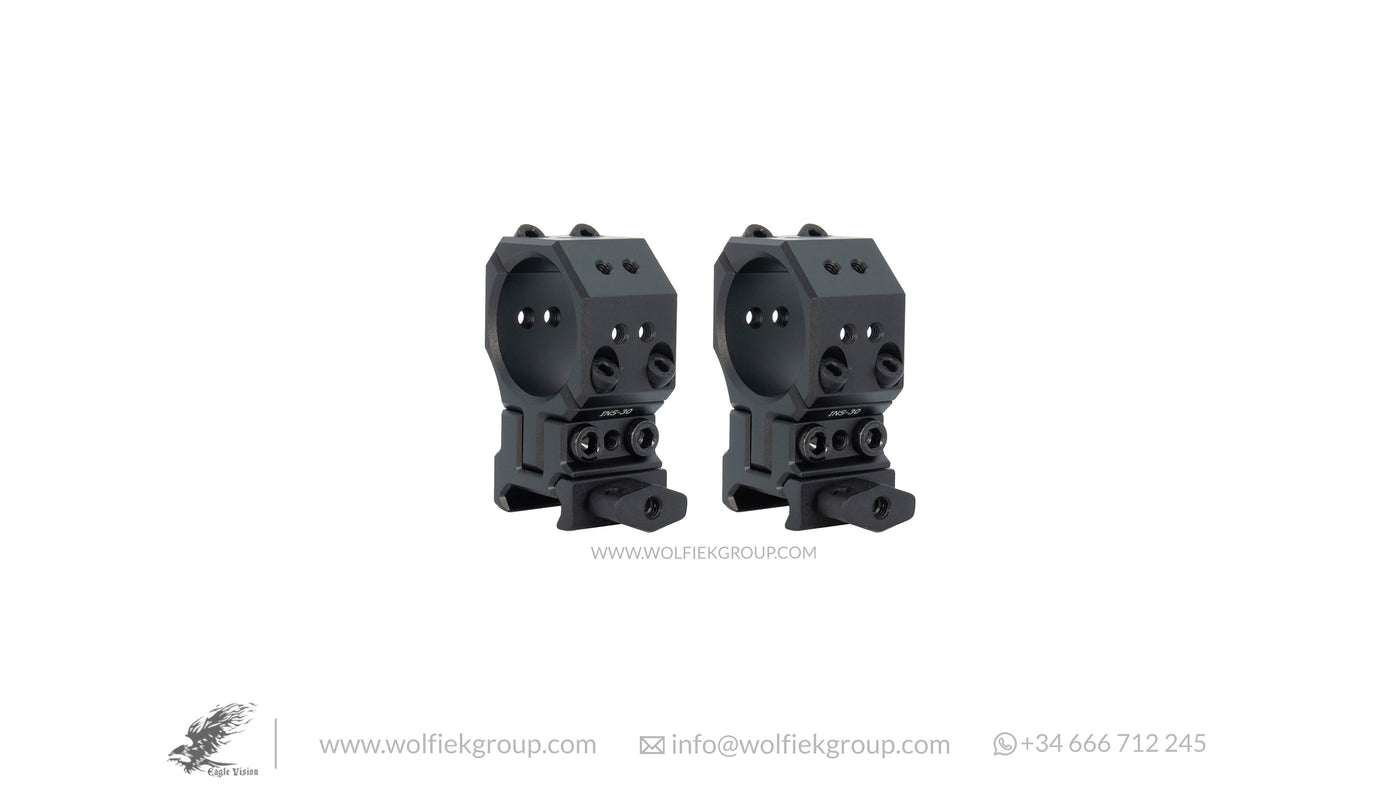

For long-range shooters who run out of adjustment clicks, these scope mounts allow you to keep the front mount at its lowest and elevate the rear mount to the highest point so that you can zero in your gun far beyond what standard mounts allow you to do while keeping the optical center of your scope unmoved.
It also allows you to use your scope when the rail position is awkward or there's a lack of space between the rings
Height: 65 mm to 69.5 mm (adjustable)
Profile height: 21 mm
Adjustable height: 4.5 mm
Weight: 92 gm each one
Centre of the ring to the bottom of the rail: 38 mm in closed position
Centre of the ring to the bottom of the rail: 42.5 mm in open position
