MODEL 1 BLACK of scope mount 30mm

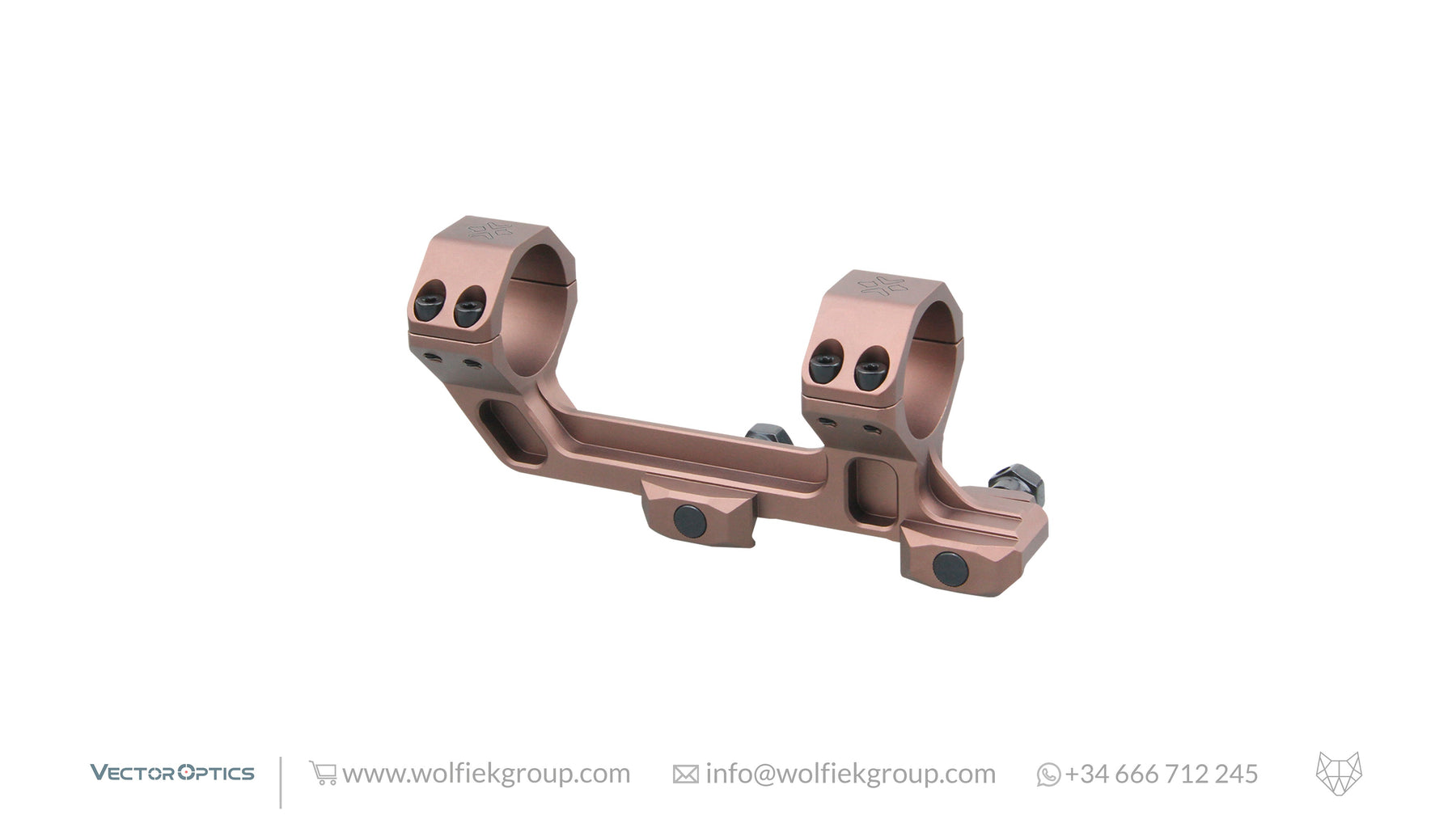

MODEL 1 COYOTE of scope mount 30mm

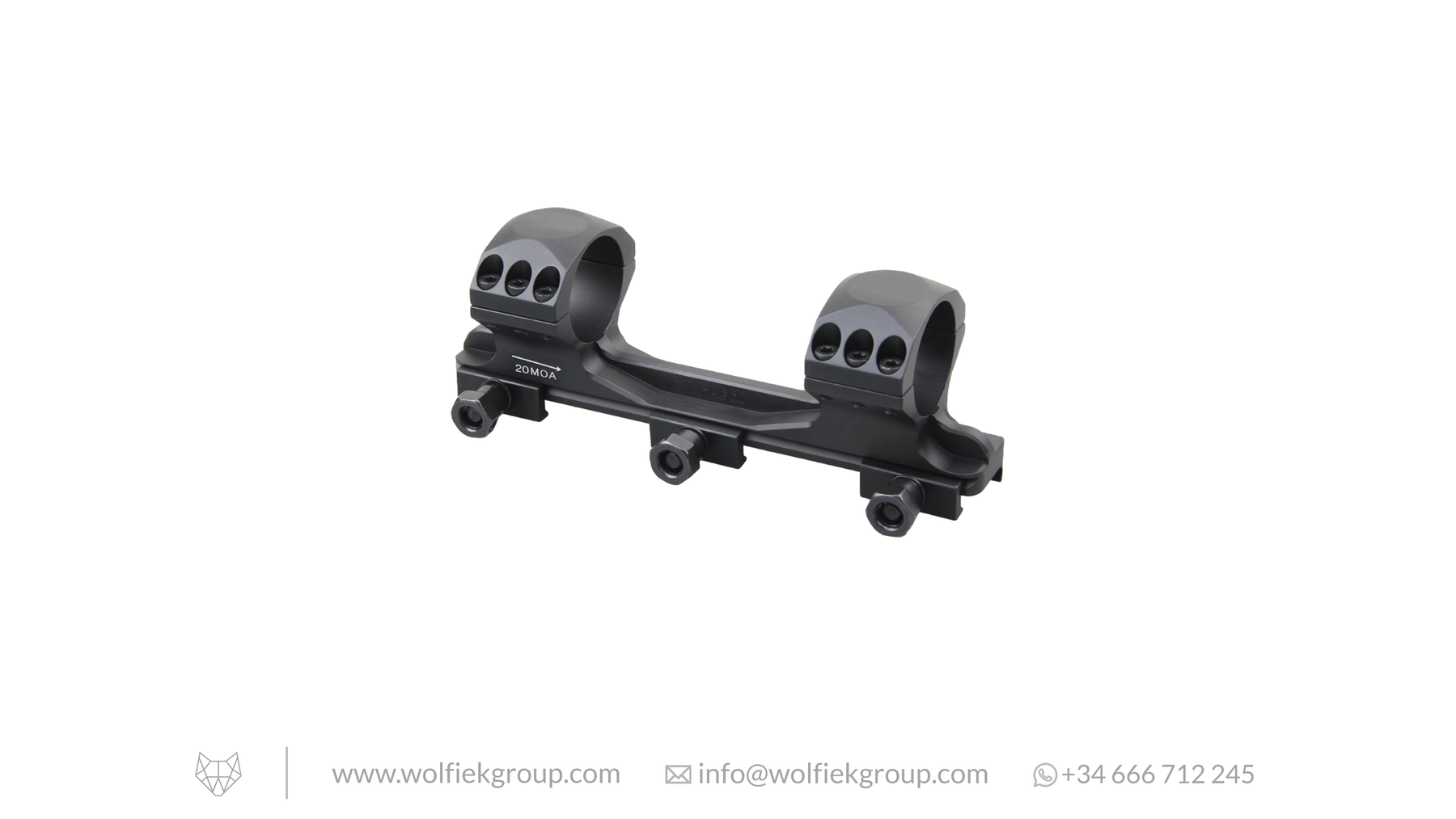

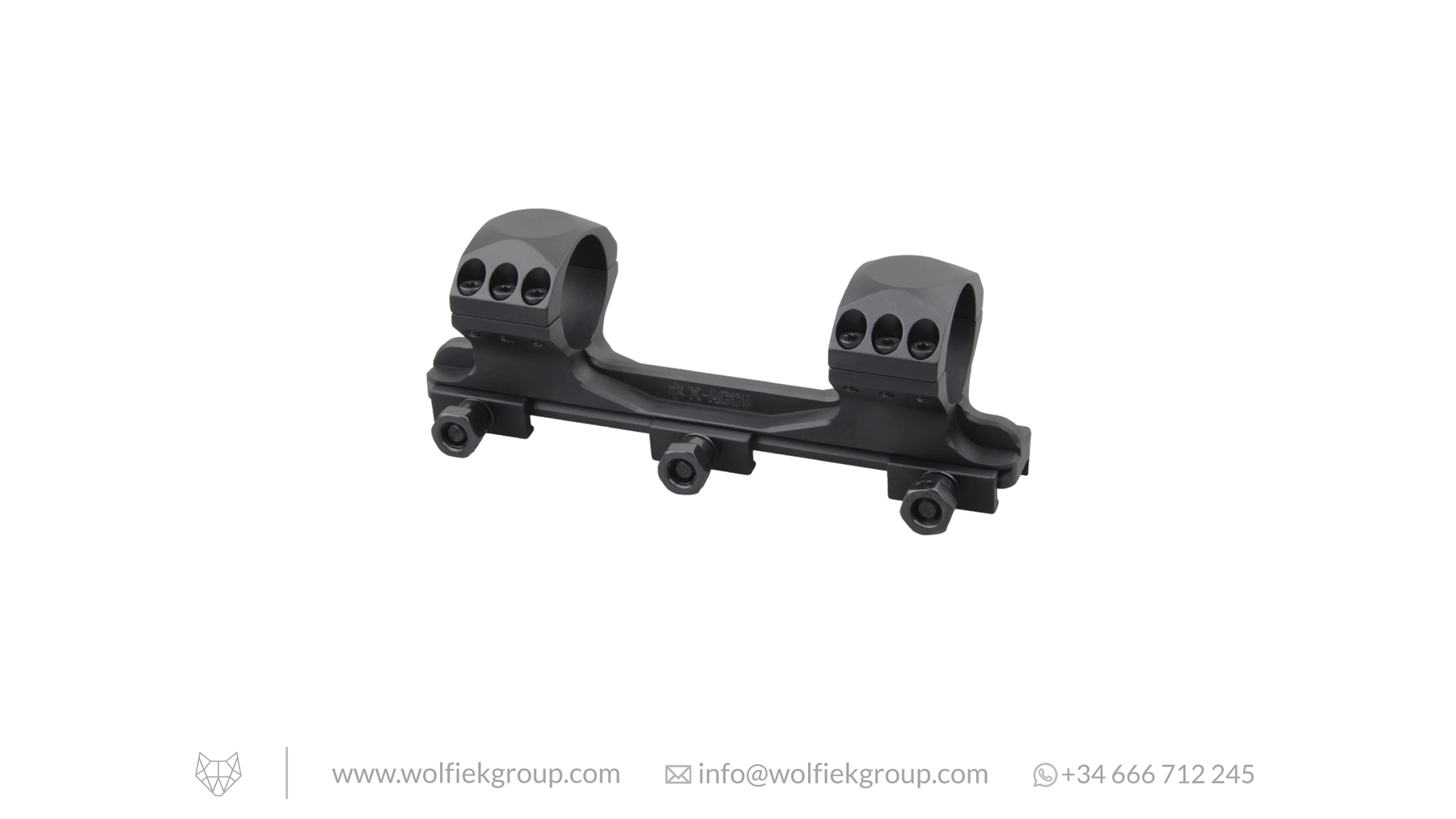

MODEL 2 - XASR-3010 0MOA
MODEL 2 - XASR-3011 20MOA
MODEL 3 BLACK of scope mount 30mm
Vector  Optics · Weaver Scope Mounts 30mm ONE-PIECE

Vector Optics · Weaver Scope Mounts 30mm ONE-PIECE

Regular price€49,00
/
Tax included. Shipping calculated at checkout.

MODEL
COL
MOA
  • Worldwide shipping
  • Item: 0 MOA  XASR-3035 (coyote) or XASR-3031 (black)
    Item: 20 MOA XASR-3036 (coyote) or XASR-3032 (black)
    • Ring Diameter: 30mm
    • Overall Length: 139m / 5.5"
    • Overall Height: 62mm / 2.4"
    • Mount Length: 120mm / 4.7"
    • Ring Width: 46mm / 1.8"
    • Central Height: 38mm / 1.5", bottom to center
    • Ring Length: 21mm / 0.8"
    • Gap Length: 73mm / 2.9"
    • Material: 6061-T6 aluminum alloy
    • Weight: 155g / 5.5oz
    • Mount: 1913 Picatinny
    • Screws per ring: 4
    • High-durability aluminum alloy in matte finish
    • Do not use over 18"  of torque on the scope rings' screws
    • Suggest 25in (can accept max 45in) torque force for big nut when installing the mount on the picatinny rail
    • Designed for hard and rigorous use
    • Included item: hex key
  • Item: XASR-3010 (0 MOA - Black) / XASR-3011 (20 MOA - Black)
    • Diameter: 30mm
    • Overall Length: 154m / 6.1"
    • Overall Height: 59mm / 2.3"
    • Mount Length: 154mm / 6.1"
    • Ring Width: 45.5mm / 1.8"
    • Central Height: 32mm / 1.2", bottom to center
    • Ring Length: 26mm / 1.0"
    • Gap Length: 70mm / 2.8"
    • Material: 6061-T6 aluminum alloy
    • Weight: 230g / 8.5oz
    • Mount: Picatinny
    • Finish: Hard anodizing in black matte
    • Screws per ring: 6
    • 0MOA / 20MOA
    • High-durability aluminum alloy in black matte, designed for high recoil calibers
    • Do not use over 18" of torque on the scope rings' screws
    • Suggest 25in (can accept max 45in) torque force for big nut when installing the mount on the picatinny rail
    • Included item: hex key

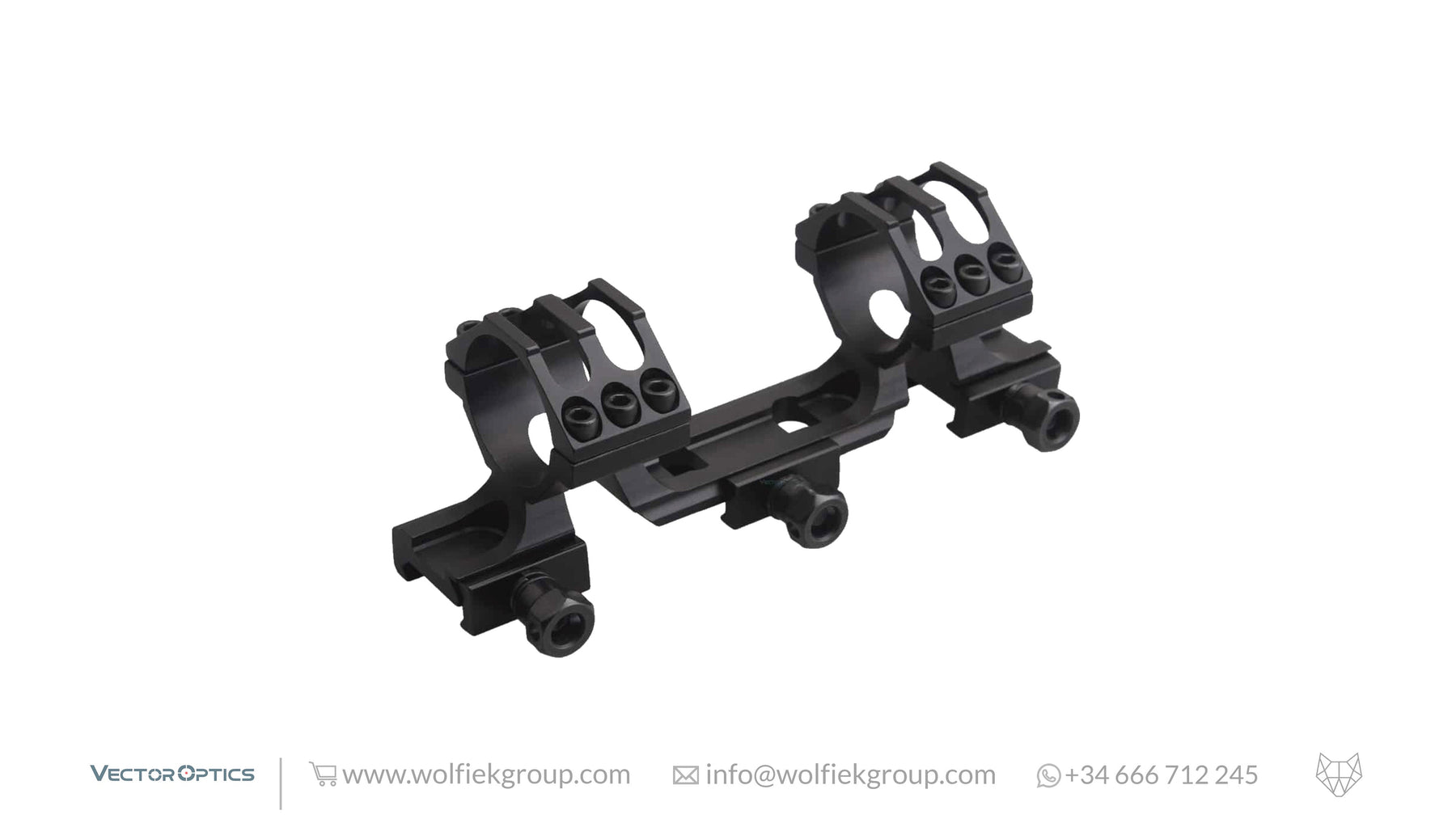

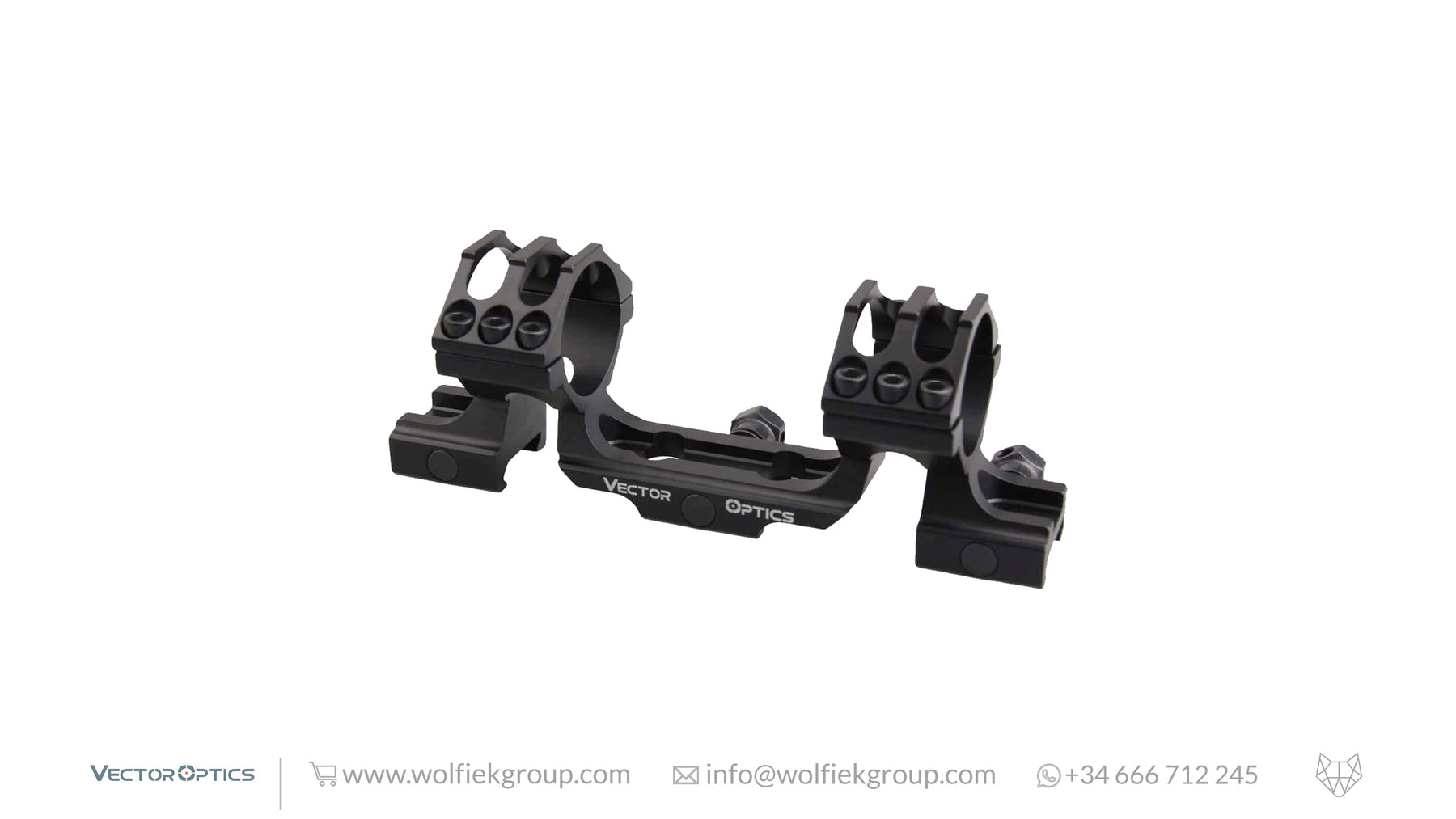

  • Item: SCTM-36
    • Mount Length: 146mm / 5.7"
    • Rings Gap: 57mm /  2.2"
    • Height: 35mm / 1.25" bottom to ring center
    • Weight: 150g / 5.3oz
    • Materials: 6063 T6
    • Length: 137mm / 5.4"
    • Finish: Black matte
    • 6 screws per ring
    • 3 Crossing Bolts
    • Full CNC produced
    • Test on Lapua magnum 336 ammo
